產品詳細

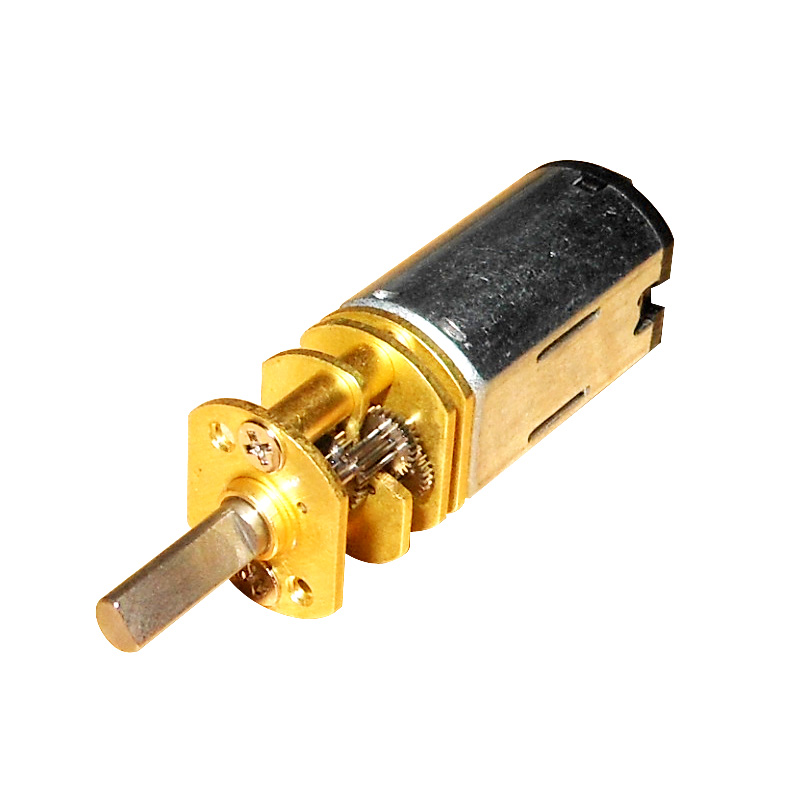

  • 名(ming)稱: ET-SGM10
  • 編號(hao): ET-SGM10
  • 概要:

Overviews
Performance Range: Key Features: Typical Applications:
-Voltage: 1.5~3.6VDC
-Speed: 10~2000rpm
-Torque: 0.05~6kg.cm
-Metal Brush
-CW/CCW Running
-Low noise
-Safe and Locking
-Electric Valve
Gear Ratio
Gear Ratio Stage 3 4
Gear Ratio 100 250





Gearbox Length(L) 9

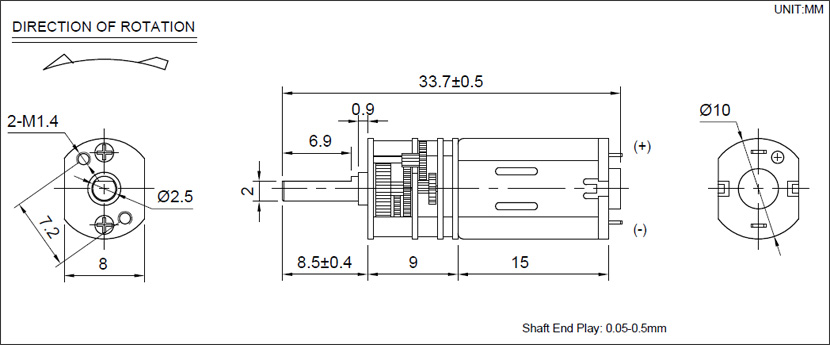

Dimensions
Reference Data
MODEL VOLTAGE NO LOAD AT RATED LOAD
OPERATION RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE
r/min A r/min A kg.cm
ET-SGM10-03152 1.5-4.5 3.0 152 ≤0.07 135 ≤0.14 0.07
ET-SGM10-0362 1.5-4.5 3.0 62 ≤0.07 52 ≤0.14 0.19
Remarks:
1. Shaft dimension can be customized, we usually have 8.5mm and 10mm stocks
2. The Voltage can be 1.5V, 3V; The DC Motor's speed is adjustable.
3. This gearbox can matched with other DC Motor.
