您現在的位置:快猫app下载產品系列圓形直齒減速電機 > ET-SGM30A

產品詳細

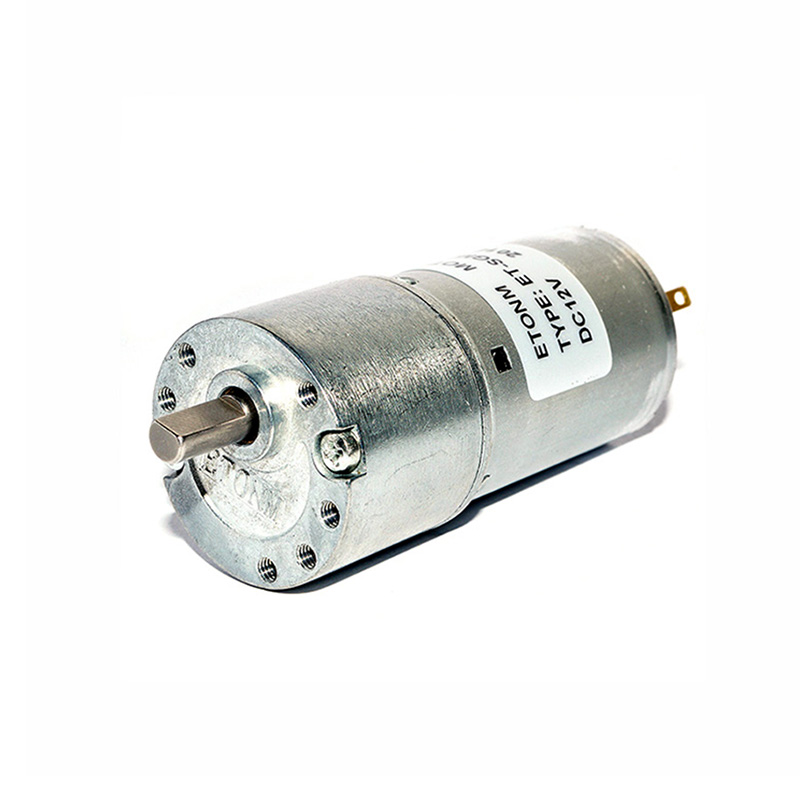

  • 名(ming)稱: ET-SGM30A
  • 編號(hao): ET-SGM30A
  • 概要:

Overviews
Performance Range: Key Features: Typical Applications:
-Voltage: 12~24VDC
-Speed: 10~600rpm
-Torque: 0.5~10kg.cm


-Carbon Brush
-CW/CCW Running
-Low noise
-Intelligent Cleaner
-Vending and Banking Automation
-Automotive Door Opener
Gear Ratio
Gear Ratio Stage 2 3 4 5
Gear Ratio 10 20 60 120
  30 90 180
    100 270
      300


Gearbox Length(L)  23

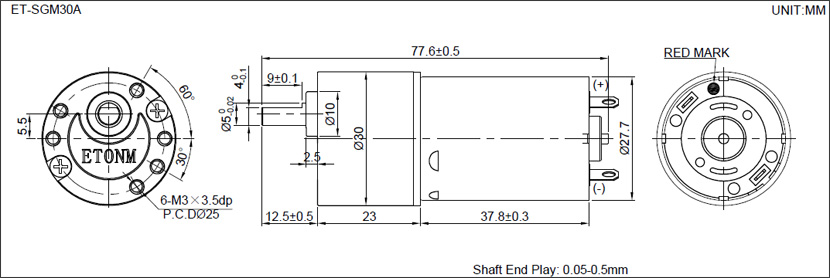

Dimensions
Reference Data
MODEL VOLTAGE NO LOAD AT RATED LOAD
OPERATION
RANGE
NOMINAL SPEED CURRENT SPEED CURRENT TORQUE
r/min A r/min A kg.cm
ET-SGM30A-12600 6.0-14.0 12.0 600 ≤0.15 470 ≤0.55 0.6
ET-SGM30A-12300 6.0-14.0 12.0 300 ≤0.15 235 ≤0.55 1.0
ET-SGM30A-12200 6.0-14.0 12.0 200 ≤0.15 156 ≤0.55 1.5
ET-SGM30A-12100 6.0-14.0 12.0 100 ≤0.15 78 ≤0.55 2.7
ET-SGM30A-1266 6.0-14.0 12.0 66 ≤0.15 52 ≤0.55 4.0
ET-SGM30A-1260 6.0-14.0 12.0 60 ≤0.15 47 ≤0.55 4.5
ET-SGM30A-1250 6.0-14.0 12.0 50 ≤0.15 39 ≤0.55 5.0
ET-SGM30A-1233 6.0-14.0 12.0 33 ≤0.15 26 ≤0.55 7.5
ET-SGM30A-1222 6.0-14.0 12.0 22 ≤0.15 17 ≤0.55 10*
ET-SGM30A-1220 6.0-14.0 12.0 20 ≤0.15 15 ≤0.55 10*
Remarks:
1. Shaft dimension can be customized.
2. The Voltage can be 6V, 9V, 12V, 24V; The DC Motor's speed is adjustable.
3. This gearbox can matched with other DC Motor.
