您現在的位置:快猫app下载產品系列圓形直齒減速電機 > ET-SGM37D2

產品詳細

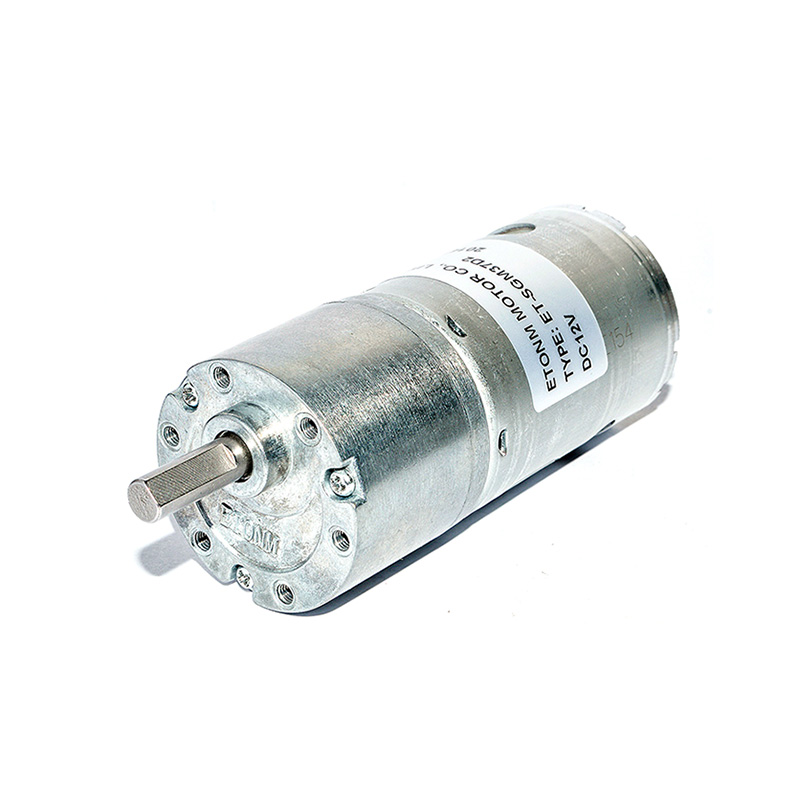

  • 名(ming)稱: ET-SGM37D2
  • 編號: ET-SGM37D2
  • 概(gai)要:

Overviews
Performance Range: Key Features: Typical Applications:
-Voltage: 12~24VDC
-Speed: 10~600rpm
-Torque: 0.5~30kg.cm

-Carbon Brush
-CW/CCW Running
-Low noise
-Range Hood
-Vending and Banking Automation
-Robotics
Gear Ratio
Gear Ratio Stage 2 3 4 5 6
Gear Ratio 10 20 50 120 450
  30 60 150 490
    70 210 630
    90 270 810


Gearbox Length(L) 24.5 29

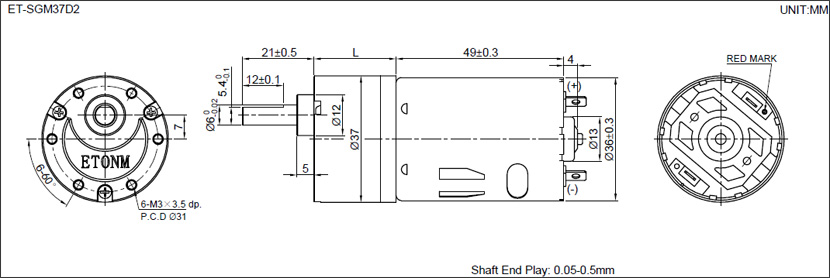

Dimensions
Reference Data
MODEL VOLTAGE NO LOAD AT RATED LOAD
OPERATION RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE
r/min A r/min A kg.cm
ET-SGM37D2-12600 9.0-14.0 12.0 600 ≤0.36 500 ≤1.4 1.4
ET-SGM37D2-12300 9.0-14.0 12.0 300 ≤0.36 250 ≤1.4 2.5
ET-SGM37D2-12200 9.0-14.0 12.0 200 ≤0.36 166 ≤1.4 4
ET-SGM37D2-12120 9.0-14.0 12.0 120 ≤0.36 100 ≤1.4 5.6
ET-SGM37D2-1285 9.0-14.0 12.0 85 ≤0.36 71 ≤1.4 7.8
ET-SGM37D2-1267 9.0-14.0 12.0 67 ≤0.36 55 ≤1.4 10
ET-SGM37D2-1250 9.0-14.0 12.0 50 ≤0.36 42 ≤1.4 12
ET-SGM37D2-1240 9.0-14.0 12.0 40 ≤0.36 33 ≤1.4 15
ET-SGM37D2-1229 9.0-14.0 12.0 29 ≤0.36 24 ≤1.4 21
ET-SGM37D2-1222 9.0-14.0 12.0 22 ≤0.36 18.5 ≤1.4 27
ET-SGM37D2-1213 9.0-14.0 12.0 13 ≤0.36 11 ≤1.4 30*
ET-SGM37D2-129.5 9.0-14.0 12.0 9.5 ≤0.36 8 ≤1.4 30*
ET-SGM37D2-1207 9.0-14.0 12.0 7 ≤0.36 6 ≤1.4 30*
Remarks:
1. Shaft dimension can be customized.
2. The Voltage can be 6V, 12V, 24V; The DC Motor's speed is adjustable.
3. This gearbox can matched with other DC Motor.
