您現在的位置:快猫app下载產品系列圓形直齒減速電機 > ET-SGM51B

產品詳細

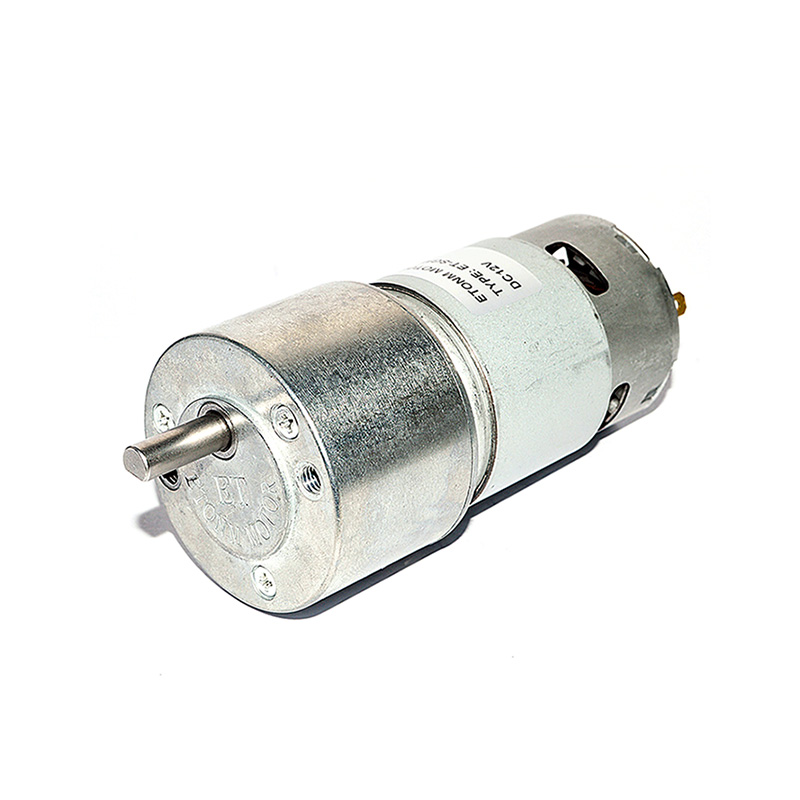

  • 名稱: ET-SGM51B
  • 編號: ET-SGM51B
  • 概(gai)要:

Overviews
Performance Range: Key Features: Typical Applications:
-Voltage: 12~24VDC
-Speed: 10~600rpm
-Torque: 2~60kg.cm
-Long Lifetime
-CW/CCW Running
-Low noise
-Vending and Banking System
-Equipment and Apparatus
-Robotic
Gear Ratio
Gear Ratio Stage 2 3 4 5 6
Gear Ratio 5.9 19.7 65.5 218 728
9.9 33 110 367 1223




Gearbox Length(L) 37.5

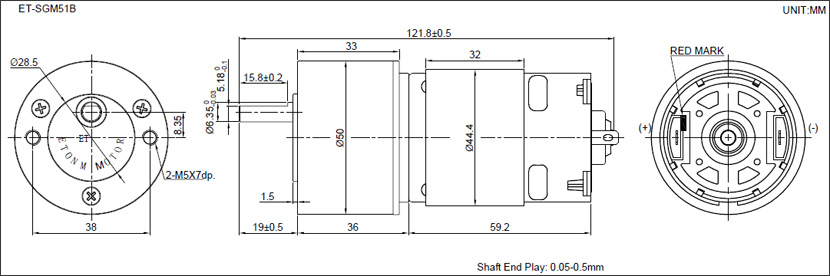

Dimensions
Reference Data
MODEL VOLTAGE NO LOAD AT RATED LOAD
OPERATION
RANGE
NOMINAL  SPEED CURRENT SPEED CURRENT TORQUE
r/min A r/min A kg.cm
ET-SGM51B-121200 9.0-14.0 12VDC 1200 ≤0.7 1000 ≤6.0 2.4
ET-SGM51B-12700 9.0-14.0 12VDC 700 ≤0.7 600 ≤6.0 4
ET-SGM51B-12375 9.0-14.0 12VDC 375 ≤0.7 280 ≤6.0 7
ET-SGM51B-12210 9.0-14.0 12VDC 210 ≤0.7 168 ≤6.0 12
ET-SGM51B-12110 9.0-14.0 12VDC 110 ≤0.7 85 ≤6.0 22
ET-SGM51B-1264 9.0-14.0 12VDC 64 ≤0.7 48 ≤6.0 36
ET-SGM51B-1232 9.0-14.0 12VDC 32 ≤0.7 25 ≤6.0 60*
ET-SGM51B-1219 9.0-14.0 12VDC 19 ≤0.7 13 ≤6.0 60*
ET-SGM51B-1210 9.0-14.0 12VDC 10 ≤0.7 7 ≤6.0 60*
ET-SGM51B-1206 9.0-14.0 12VDC 6 ≤0.7 4 ≤6.0 60*
Remarks:
1. Shaft dimension can be customized.
2. The Voltage can be 12V, 24V; The DC Motor's speed is adjustable.
3. The gearbox can matched with different DC motors.
